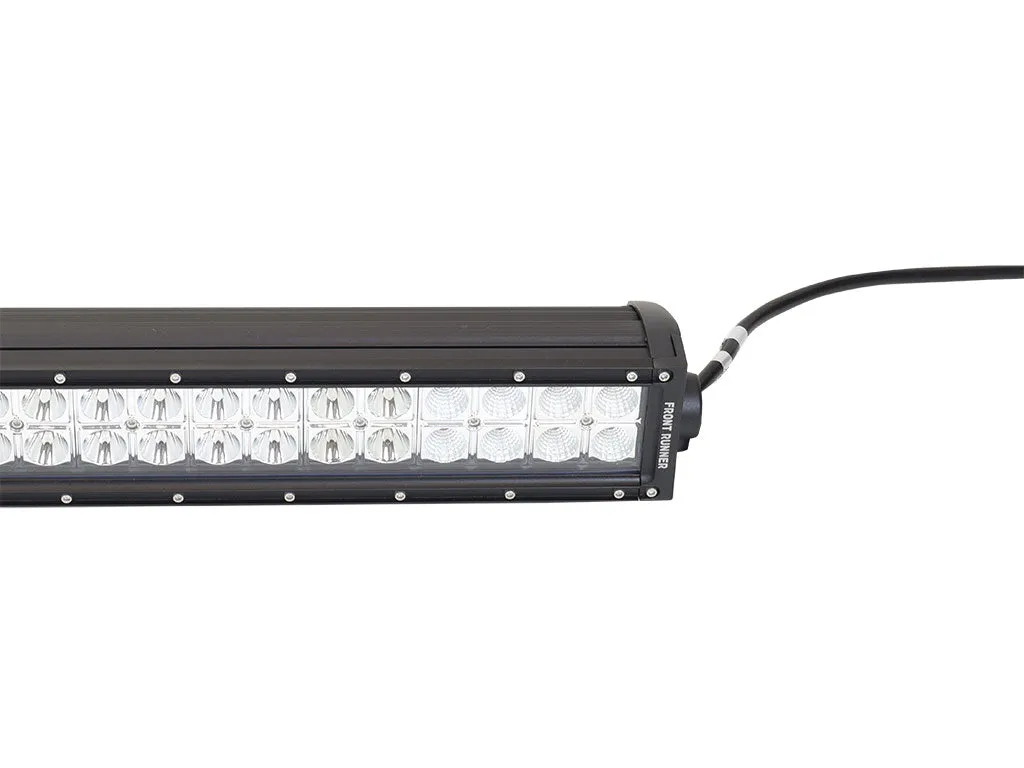

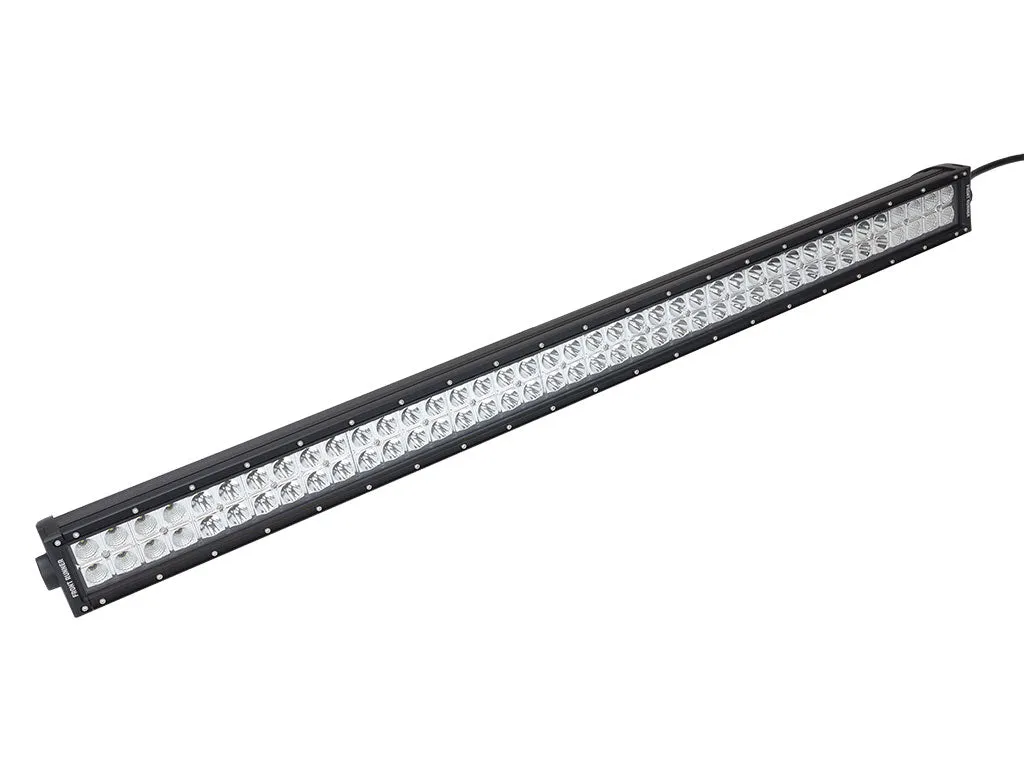

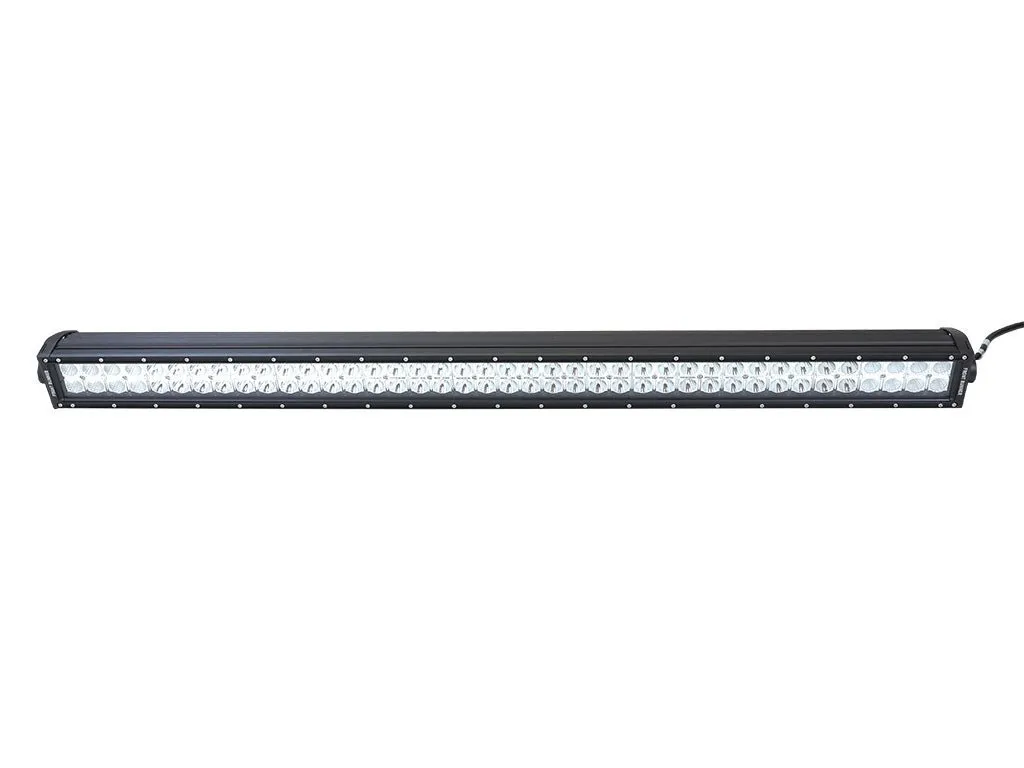

A dual row LED Light Bar, that features 80 high-performance LEDs for improved visibility. The 21600 raw lumen provides 6000 Kelvin light intensity and is distributed as a combo beam pattern for near and far-field illumination.
Combo beam pattern includes a 90-degree flood beam for wide light distribution and eight-degree spot beam for closer range, focused light distribution.
This auxiliary light is equipped with a robust polycarbonate lens set in a die cast aluminum housing.
The 12V/24V LED Light Bar is versatile in application and is not limited to automotive use only. Expected LED life of 30,000 hours.
A complete kit to secure your 40'' Light Bar to your Slimline II rack is available: {RRAC101}.

Specifications

Consists of:1 x 40'' Light Bar1 x Bracket Set
Materials used:Diecast aluminum housingPolycarbonate lensZinc alloy brackets
Product Dimensions:Light Bar:1073mm (42.3'') L x 86.5mm (2.2'') W x 78.5mm (3.1'') H
Weight:6kgs (13.2lbs) Special Notes:Bean Pattern: Combo - Flood (90°)/Spot(8°)LED Power: 240WOperating Voltage: 10-30V DCWaterproof rate: IP 6780pcs*3w CREE LEDSRaw Lumen:21600 lmCurrent draw:12V/2.40A；24V/1.12AColor Temperature: 6000K

Dimensions

150mm Depth 150mm Length 1190mm Width

Fitting Instructions
